Application:
The furnace is vertical or horizontal configuration, mainly applys to metal annealing, brazing, sintering and degassing
treatment under the condition of high vacuum and temperature. Meanwhile, also used to do the treatment of quartz
dehydroxylation.
Features：

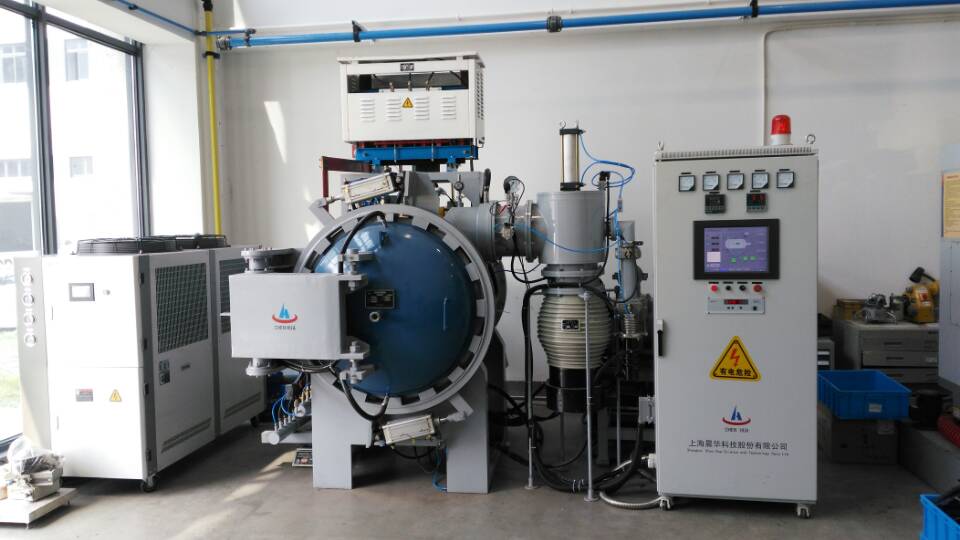

Vacuum molybdenum wire sintering furnace consists of furnace shell, heating element, thermal insulation shield,
vacuum system and electrical control system.
1.Heating element adopts high temperature molybdenum wire or molybdenum strips. Reasonable layout of heating
element is conducive to boosting temperature uniformity.
2. Main loop of circuit system is low voltage large current input.Automatic control adopts the mode of PLC plus
touch screen.Going by the program, auotmatically perform the process of the motion, temperature rise and fall.
Simple to operate it. Control system possesses alarm and protective functions of water interruption, over-temperature
and over-current etc.
Main Technical Parameters:
| Model | Rated Power | Max. Temperature | Working Size | Ultimate Vacuum |
| ZM-40-10 | 40KW | 1600℃ | ?200X280mm | 10-3Pa |
| ZM-45-15 | 45KW | 1500℃ | ?340X400mm | 10-4Pa |
| ZM-160-13 | 160KW | 1300℃ | ?730X940mm | 10-3Pa |
